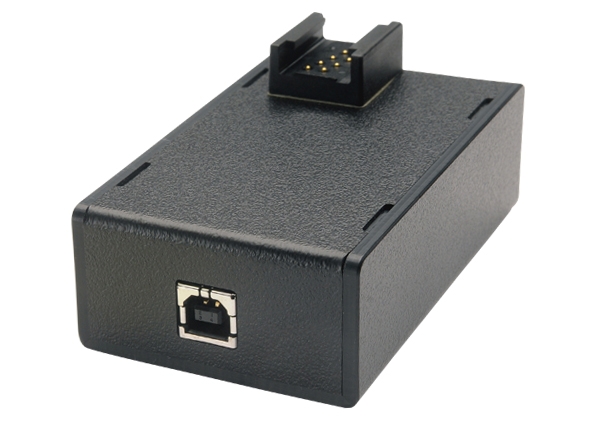

BarLink III
The BarLink III programmer allows host devices, such as personal computers, to easily interface with Bar-style memory tokens. The BarLink III programmer also accepts all Datakey’s Bar-style tokens, supporting Microwire, I2C and SPI serial EEPROM families. The BarLink III provides high-speed throughput through its USB 2.0 interface. Each supported memory token is read and/or written by sending commands and data over the USB serial interface. The programmer will also respond with feedback data and a status response, allowing the host application to easily monitor the communications with the BarLink III. The BarLink III programmers are packaged with a USB cable, sample software application and integration documentation. A BarLink development kit is also available which includes the BarLink III programmer, along with source code for the sample application, plug memory token samples, as well as Bar receptacle samples.
BarLink III | |
Part Number | 699-0120-000A |
Development Kit Part No. | 702-0092-000A |
PC Interface | USB 2.0 Full Speed (Type B Connector) |
Power | 5.0 V, supplied by USB (50 mA typical) |
Throughput | Read: 4 Mbps Write: 1 Mbps (speeds typical) |
Receptacle Contact Life | 15,000 cycles min. |
Operating Temperature | 0˚C to +70˚C |
Storage Temperature | -40˚C to +85˚C |
Used With | All serial EEPROM Bar memory tokens |
Supported Operating Systems | Windows XP, Windows 7, Windows 8, Windows 10 (32- and 64-bit) |
Included Accessories | 6' USB cable, CD with documentation, Windows drivers and sample application |
Compliance | RoHS Compliant, CE |
