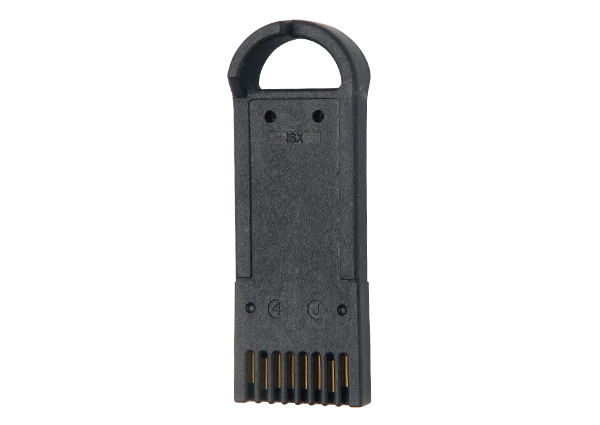

DFX Series Memory Tokens
KEYS & TOKENS
Models: DFX4GB, DFX8GB, DFX16GB, DFX32GB, DFX64GB
THIS PRODUCT IS OBSOLETE.
For new designs, use the DFX-I Industrial RUGGEDrive memory tokens.
Datakey DFX memory tokens provide SD card functionality in a form factor that is more rugged and secure than consumer and industrial SD cards. DFX tokens offer high memory capacity (4 – 64 GB) and high throughput utilizing Secure Digital (SD) technology. Electrically, DFX tokens utilize a standard SD electrical interface (per the SD specification) – including support of SPI mode communications for embedded applications.
4 GB - 64 GB
SD or SPI (per Secure Digital specification)
NAND Flash
10,000 cycles min.
All SlimLine Receptacles (SRxxxx) and DFX PC Adapter

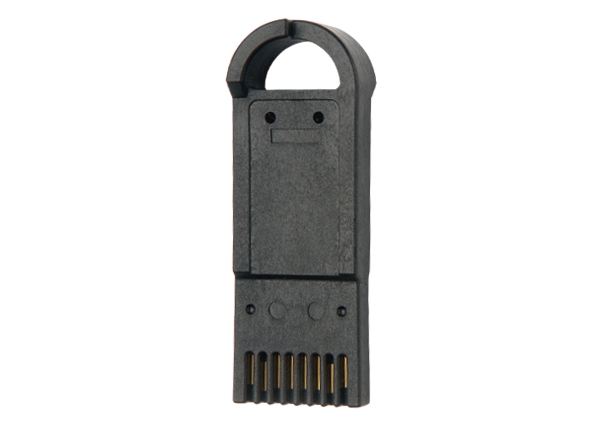

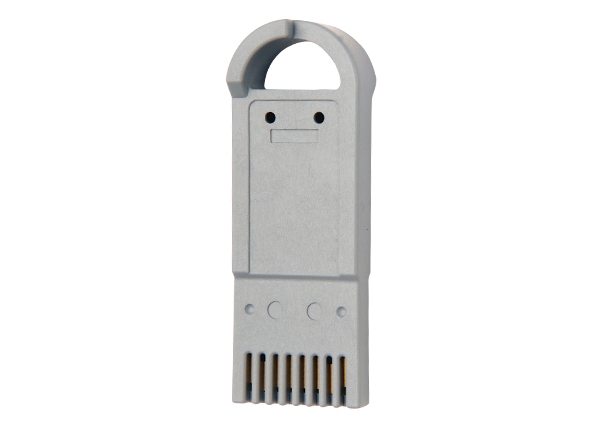

UFX Series Memory Tokens
KEYS & TOKENS
Models: UFX4GB, UFX8GB, UFX16GB, UFX32GB, UFX64GB
THIS PRODUCT IS OBSOLETE.
For new designs, use the UFX-I Industrial RUGGEDrive memory tokens.
Datakey UFX memory tokens give embedded designers USB flash drive functionality in a more robust and secure form factor than consumer flash drives. UFX memory tokens offer high memory capacity (4 – 64 GB) and high throughput utilizing a USB 2.0 Hi-Speed interface.
4 GB - 64 GB
USB 2.0 (Hi-Speed)
Flash
10,000 cycles min.
All SlimLine Receptacles (SRxxxx), UR Receptacles, UFX PC Adapters

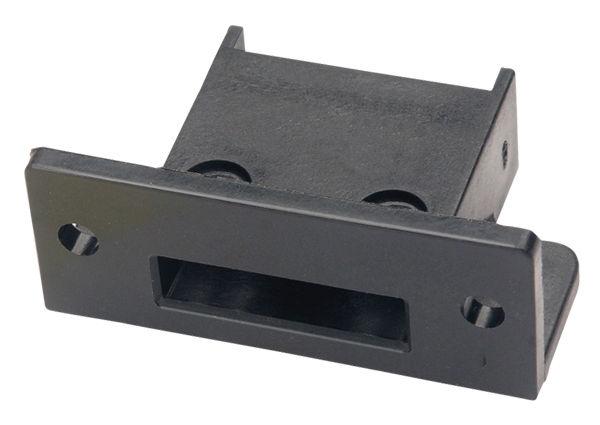

SR4210SMT
RECEPTACLES
Models: SR4210SMT
THIS PRODUCT IS OBSOLETE.
For new designs, use the SR4210SM.
The SR4210SMT receptacle is a board-mount interface connector for all Datakey SlimLine™, Extended SlimLine, NFX, and RUGGEDrive™ memory tokens (see token data sheets for more details). The SR4210SMT receptacle features corrosion-resistant, gold dot contacts that perform reliably over a wear life of at least 50,000 insertion/removal cycles.
Board Mount (SMT)
Right Angle Board Edge
50,000 cycles min.
Serial Memory Tokens, Secure Memory Tokens, NFX Tokens, RUGGEDrive Tokens

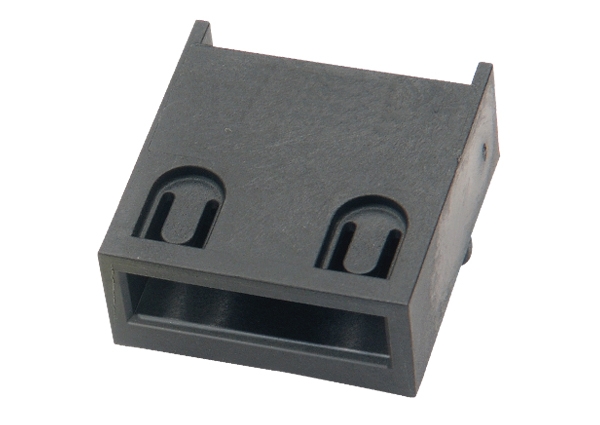

SR4220SMT
RECEPTACLES
Models: SR4220SMT
The SR4220SMT Receptacle is a board-mount interface connector for all Datakey’s SlimLine™, Extended SlimLine, NFX, and RUGGEDrive™ Tokens (see token data sheets for more details). The SR4220SMT Receptacle features corrosion-resistant, gold dot contacts that perform reliably over a wear life of at least 50,000 insertion/removal cycles.
Board Mount (SMT)
Right Angle Board Edge
50,000 cycles min.
Serial Memory Tokens, Secure Memory Tokens, NFX Tokens, RUGGEDrive Tokens

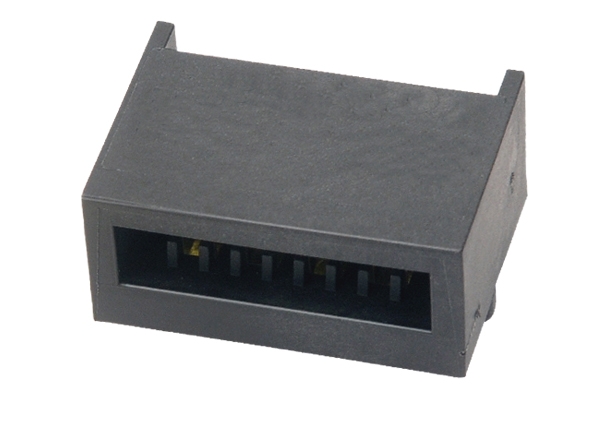

SR4230SMT
RECEPTACLES
Models: SR4230SMT
The SR4230SMT Receptacle is a board-mount interface connector for all Datakey’s SlimLine™, Extended SlimLine, NFX, and RUGGEDrive™ Tokens (see token data sheets for more details). The SR4230SMT Receptacle features corrosion-resistant, gold dot contacts that perform reliably over a wear life of at least 50,000 insertion/removal cycles.
Board Mount (SMT)
Right Angle Board Edge
50,000 cycles min.
Serial Memory Tokens, Secure Memory Tokens, NFX Tokens, RUGGEDrive Tokens

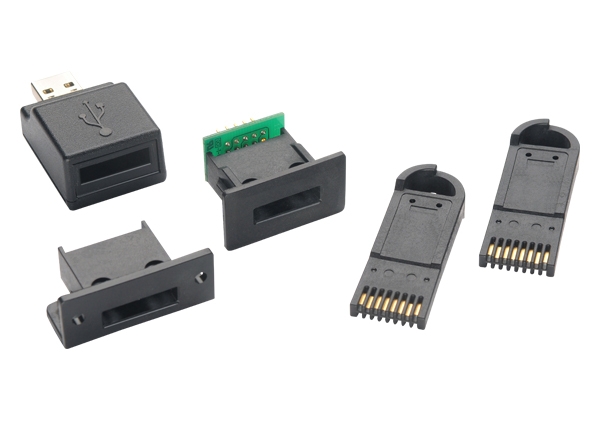

DFX RUGGEDrive Development Kit
DEVELOPMENT KITS
Models: DFX4GB Dev Kit, DFX8GB Dev Kit, DFX16GB Dev Kit, DFX32GB Dev Kit
THIS PRODUCT IS OBSOLETE.
For new designs, use the DFX-I Industrial RUGGEDrive development kits.
The DFX RUGGEDrive Development Kit provides all the necessary tools to build a simulated system to test its abilities and benefits. It is a cost-effective way to bring products to market faster, reduce design and development costs, and to respond quickly to changing market demands. Each kit includes (1) DFX PC Adapter, (1) SR4210 panel-mount receptacle, (1) SR4220PCB board-mount receptacle, and (2) customer-specified DFX token samples.
DFX PC Adapter
Two DFX RUGGEDrive memory token samples
SR4210 panel-mount receptacle SR4210PCB board-mount receptacle
Those supporting the USB Mass Storage Class

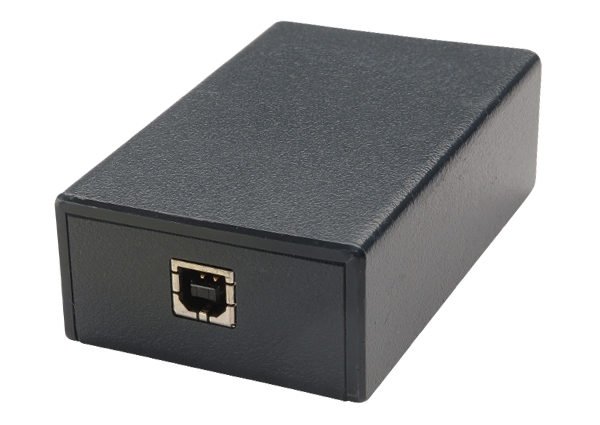

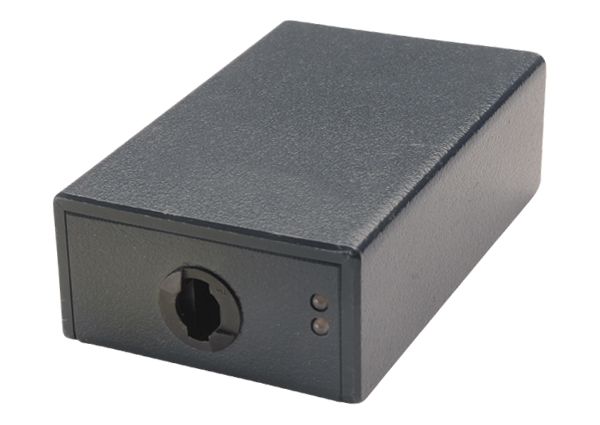

KeyLink II Development Kit
DEVELOPMENT KITS
Models: KeyLink IIs Dev Kit, KeyLink IIu Dev Kit, KeyLink IIse Dev Kit

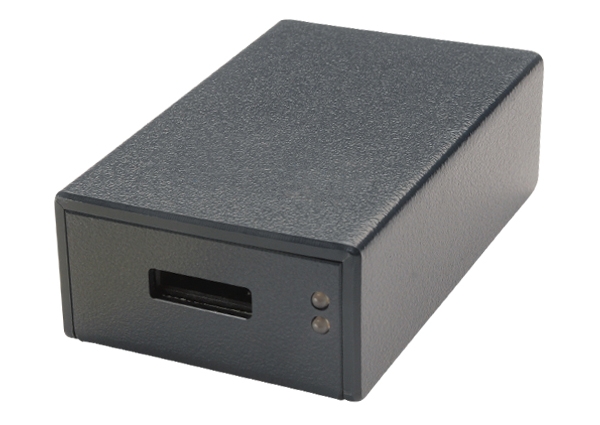

SlimLink II Development Kit
DEVELOPMENT KITS
Models: SlimLink IIs Dev Kit, SlimLink IIu Dev Kit, SlimLink IIse Dev Kit
Slimtroller II Development Kit
DEVELOPMENT KITS
Models: Slimtroller IIs Dev Kit, Slimtroller IIu Dev Kit

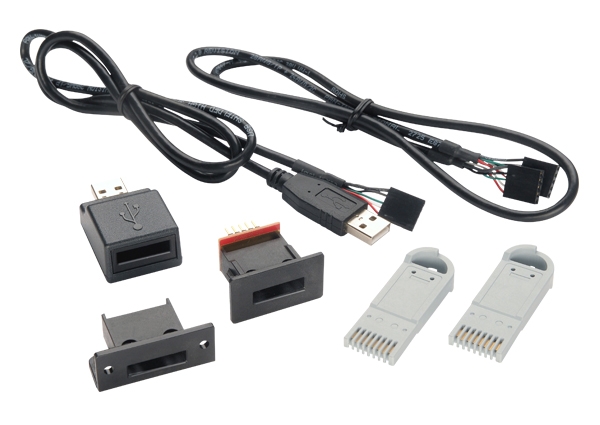

UFX RUGGEDrive Development Kit
DEVELOPMENT KITS
Models: UFX4GB Dev Kit, UFX8GB Dev Kit, UFX16GB Dev Kit, UFX32GB Dev Kit
THIS PRODUCT IS OBSOLETE.
For new designs, use the UFX-I Industrial RUGGEDrive development kits.
The UFX RUGGEDrive Development Kit provides all the necessary tools to build a simulated system to test its abilities and benefits. It is a cost-effective way to bring products to market faster, reduce design and development costs, and to respond quickly to changing market demands.
UFX PC Adapter
Two UFX RUGGEDrive memory token samples
UR4210 panel-mount receptacle SR4220PCB board-mount receptacle
Those supporting the USB Mass Storage Class
