ISJ Series Mini-Bar Memory Tokens

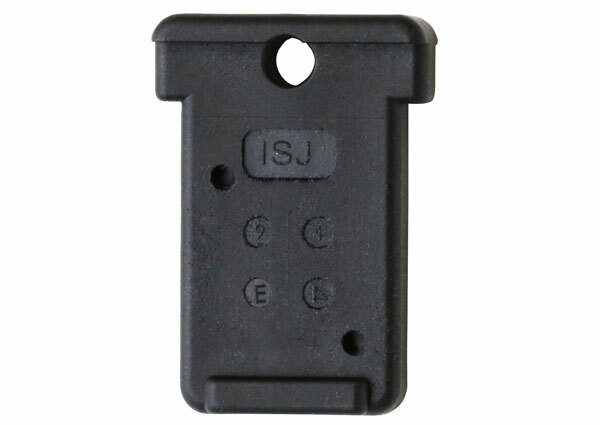

The ISJ series of Mini-Bar memory tokens contain 16Kb or 256Kb of non-volatile, serial I2C EEPROM memory. The memory is solid over-molded using a rugged composite that protects the embedded memory and is resistant to environmental influences such as vibration, ice, dirt, moisture, chemicals, and electrostatic discharge. Each token contains a hole so it can be attached to a keychain or a lanyard. The ISJ token is an ideal credential or low-capacity data transfer solution for small hand-held mobile devices operating in harsh environments.
| ISJ16Kb | |
| Part Number | 611-0243-000A (Black) 611-0243-002A (Red) 611-0243-008A (Gray) Contact ATEK for other colors. |
| Memory Capacity | 16 Kb (16,384 bits) 2048 x 8 |
| Interface | I²C |
| Memory Technology | EEPROM |
| Voltage | 2.7 to 5.5 V |
| ESD Protection | 15 kV (air) (per EN 61000-4-2) |
| Read Cycles | Unlimited |
| Write/Erase Cycles | 1,000,000 min. |
| Data Life (Storage) | 10 years min. |
| Contact Life | 15,000 cycles min. |
| Operational Temperature | -40 ˚C to +85 ˚C |
| Storage Temperature | -40 ˚C to +100 ˚C |
| Used With | All Mini-Bar Receptacles, MBLink III Programmers |
| Compliance | RoHS Compliant |
| Other Features | I²C Address: 0 |
| ISJ256Kb | |
| Part Number | 611-0244-000A (Black) 611-0244-002A (Red) 611-0244-008A (Gray) Contact ATEK for other colors. |
| Memory Capacity | 256 Kb (262,144 bits) 32,768 x 8 |
| Interface | I²C |
| Memory Technology | EEPROM |
| Voltage | 2.7 to 5.5 V |
| ESD Protection | 15 kV (air) (per EN 61000-4-2) |
| Read Cycles | Unlimited |
| Write/Erase Cycles | 1,000,000 min. |
| Data Life (Storage) | 10 years min. |
| Contact Life | 15,000 cycles min. |
| Operational Temperature | -40 ˚C to +85 ˚C |
| Storage Temperature | -40 ˚C to +100 ˚C |
| Used With | All Mini-Bar Receptacles, MBLink III Programmers |
| Compliance | RoHS Compliant |
| Other Features | I²C Address: 0 |
