SR4410xF

SR4410xF series panel-mount receptacles mate with all Datakey SlimLine™, Extended SlimLine, and RUGGEDrive™ memory tokens. These receptacles are designed to keep water and other materials from penetrating the enclosure they are mounted in. They are available in three versions: an IP65-rated (splash-proof) version—SR4410SF; an IP67-rated (immersion-rated) version—SR4410IF; and an IP67-rated
version with EMI-reduction features—SR4410CF. The SR4410CF has its outer shell molded using an electrically conductive material to reduce electromagnetic emissions. The SR4410xF receptacles feature a Molex Easy-On FFC/FPC connector, which provides a low-profile connection with a flat flex cable or flex PCB.

All Datakey SlimLine receptacles feature “gold dome” contacts that perform reliably over a wear life of at least 50,000 insertion/removal cycles and employ a wiping mechanism to remove debris or build-up on the token’s contacts each time a token is inserted or removed. Also, SR4410xF receptacles include a detent mechanism that contributes to token retention and gives users tactile and audible confirmation when an inserted token is fully engaged. The token/receptacle system provides a Last-On/First-Off (LOFO) contact that is used by system designers to detect when a memory token has been inserted or

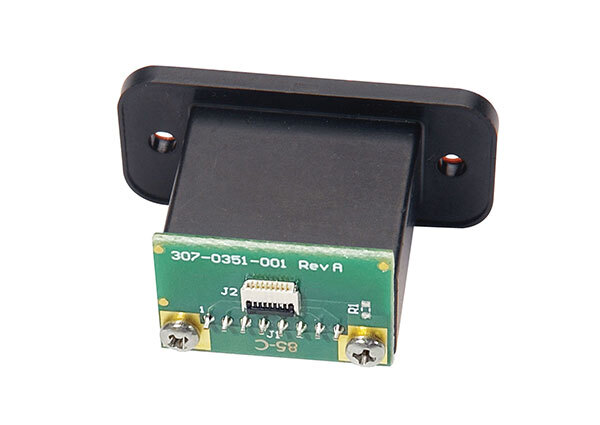

removed (contact ATEK Access Technologies for token detection details for RUGGEDrive memory tokens). SR4410xF receptacles are inserted from behind the panel and feature two non-threaded holes allowing for a variety of customer-supplied fasteners to be used. Additionally, a gasket is provided with each receptacle for sealing.
