SR4210
RECEPTACLES
Models: SR4210
The SR4210 is a panel-mount interface connector for all Datakey’s SlimLine™, Extended SlimLine, NFX, and RUGGEDrive™ Tokens (see token data sheets for more information). The SR4210 Receptacle features corrosion-resistant, gold dot contacts that perform reliably over a wear life of at least 50,000 insertion/removal cycles.
Panel Mount
50,000 cycles min.
NA
Serial Memory Tokens, Secure Memory Tokens, NFX Tokens, RUGGEDrive Tokens
SR4210PCB
RECEPTACLES
Models: SR4210PCB
The SR4210PCB board-mount receptacle mates with all Datakey SlimLine™, Extended SlimLine, and RUGGEDrive™ memory tokens (see token data sheets for more details). The SR4210PCB receptacle features a right-angle, board edge design with through-hole contacts.
Board Mount (TH)
Right Angle Board Edge
50,000 cycles min.
Serial Memory Tokens, Secure Memory Tokens, RUGGEDrive Tokens
SR4210SM
RECEPTACLES
Models: SR4210SM
The SR4210SM board-mount receptacle mates with all Datakey SlimLine™, Extended SlimLine, and RUGGEDrive™ memory tokens (see token datasheets for more details). The SR4210SM receptacle features a right-angle, board-edge design with surface-mount contacts. The receptacles can be pick-and-placed from their tray and are suitable for use in a reflow oven process.
Board Mount (SMT)
Right Angle Board Edge
50,000 cycles min.
Serial Memory Tokens, Secure Memory Tokens, RUGGEDrive Tokens
SR4220PCB
RECEPTACLES
Models: SR4220PCB
The SR4220PCB board-mount receptacle mates with all Datakey SlimLine™, Extended SlimLine, and RUGGEDrive™ memory tokens (see token datasheets for more details). The SR4220PCB receptacle features a right-angle, board-edge design with through-hole contacts.
Board Mount (TH)
Right Angle Board Edge
50,000 cycles min.
Serial Memory Tokens, Secure Memory Tokens, RUGGEDrive Tokens
SR4220SM
RECEPTACLES
Models: SR4220SM
The SR4220SM board-mount receptacle mates with all Datakey SlimLine™, Extended SlimLine, and RUGGEDrive™ memory tokens (see token datasheets for more details). The SR4220SM receptacle features a right-angle, board-edge design with surface-mount contacts. The receptacles can be pick-and-placed from their tray and are suitable for use in a reflow oven process.
Board Mount (SMT)
Right Angle Board Edge
50,000 cycles min.
Serial Memory Tokens, Secure Memory Tokens, RUGGEDrive Tokens
SR4220VRT
RECEPTACLES
Models: SR4220VRT
The SR4220VRT board-mount receptacle mates with all Datakey SlimLine™, Extended SlimLine, and RUGGEDrive™ memory tokens (see token datasheets for more details). The SR4220VRT is a vertical,
board-mount receptacle.
Board Mount (TH)
Vertical
50,000 cycles min.
Serial Memory Tokens, Secure Memory Tokens, RUGGEDrive Tokens
SR4230PCB
RECEPTACLES
Models: SR4230PCB
The SR4230PCB board-mount receptacle mates with all Datakey SlimLine™, Extended SlimLine, and RUGGEDrive™ memory tokens (see token datasheets for more details). The SR4230PCB receptacles
feature a right-angle, board-edge design.
Board Mount (TH)
Right Angle Board Edge
50,000 cycles min.
Serial Memory Tokens, Secure Memory Tokens,RUGGEDrive Tokens
SR4230SM
RECEPTACLES
Models: SR4230SM
The SR4230SM board-mount receptacle mates with all Datakey SlimLine™, Extended SlimLine, and RUGGEDrive™ memory tokens (see token datasheets for more details). The SR4230SM receptacles
feature a right-angle, board-edge design with surface-mount contacts. The receptacles can be pick-and-placed from their tray and are suitable for use in a reflow oven process.
Board Mount (SMT)
Right Angle Board Edge
50,000 cycles min.
Serial Memory Tokens, Secure Memory Tokens, RUGGEDrive Tokens
SR4310
RECEPTACLES
Models: SR4310SP, SR4310IM, SR4310CI, SR4310EI
SR4310 series panel-mount receptacles mate with all Datakey SlimLine™, Extended SlimLine, and RUGGEDrive™ memory tokens. These receptacles are designed to keep water and other materials from penetrating the enclosure they are mounted in.
Panel Mount
50,000 cycles min.
IP65/IP67
Serial Memory Tokens, Secure Memory Tokens, RUGGEDrive Tokens
SR4310xL
RECEPTACLES
Models: SR4310SL, SR4310IL, SR4310CL, SR4310EL
SR4310xL series panel-mount receptacles mate with all Datakey SlimLine™, Extended SlimLine, and RUGGEDrive™ memory tokens. These receptacles are designed to keep water and other materials from penetrating the enclosure they are mounted in. The receptacle body has a 2-piece construction – combining the field-proven SlimLine receptacle frame/contact system on the inside with a tough outer “shell” that provides additional strength and environmental protection.
Panel Mount
50,000 cycles min.
IP65/IP67
Serial Memory Tokens, Secure Memory Tokens, RUGGEDrive Tokens
SR4410
RECEPTACLES
Models: SR4410SP, SR4410IM, SR4410EI
The SR4410 series are “behind-panel” mount interface connectors that mate with all Datakey’s serial memory SlimLine™, Extended SlimLine, NFX and RUGGEDrive™ Tokens (see token data sheets for more details). This series is designed with custom mounting features and details to provide enhanced water protection.
Panel Mount
50,000 cycles min.
IP65/IP67
Serial Memory Tokens, Secure Memory Tokens, RUGGEDrive Tokens

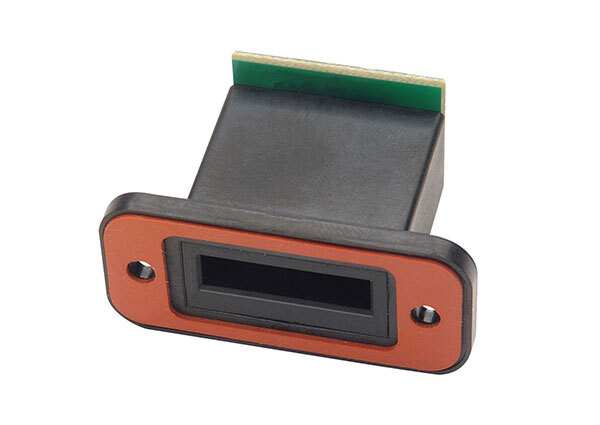

SR4410xF
RECEPTACLES
Models: SR4410SF, SR4410IF, SR4410CF
SR4410xF series panel-mount receptacles mate with all Datakey SlimLine™, Extended SlimLine, and RUGGEDrive™ memory tokens. These receptacles are designed to keep water and other materials from penetrating the enclosure they are mounted in. The SR4410xF receptacles feature a Molex Easy-On FFC/FPC connector, which provides a low-profile connection with a flat flex cable or flex PCB.
Panel Mount
50,000 cycles min.
IP65/IP67
Serial Memory Tokens, Secure Memory Tokens, RUGGEDrive Tokens
SR4410xL
RECEPTACLES
Models: SR4410SL, SR4410IL, SR4410CL, SR4410EL
SR4410xL series panel-mount receptacles mate with all Datakey SlimLine™, Extended SlimLine, and RUGGEDrive™ memory tokens. These receptacles are designed to keep water and other materials from penetrating the enclosure they are mounted in. The SR4410xL series of receptacles features a Molex CLIK-Mate™ wire-to-board PCB connector to provide a secure mating connection.
Panel Mount
50,000 cycles min.
IP65/IP67
Serial Memory Tokens, Secure Memory Tokens, RUGGEDrive Tokens
